Bluebeam Tool Sets – Electrical Equipment Packages
These Bluebeam Revu tool sets are built to scale for your convenience. You can easily drag and drop visuals to integrate with your detailed drawings in a matter of seconds. We have designed our tool sets with a realistic representation in different views, allowing them to be used for wall elevation or plan views. That means that no matter what you want to use them for, we’ve got you covered.
Our Bluebeam Electrical Tool Sets were developed using various sizes and ratings for the most common installations. Whether your projects are large or small, these tool sets will provide the professional detail you are looking for. Download your Bluebeam tool set today!

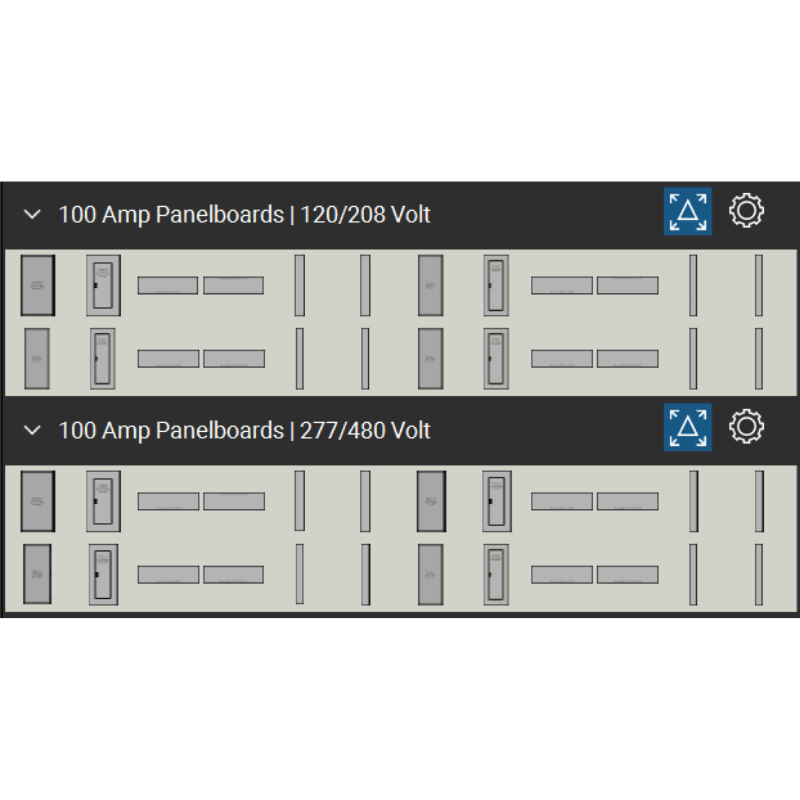

Electrical Panel Tool Set for Bluebeam
$39.95
The Bluebeam Tool Sets – Electrical Panel Package includes:

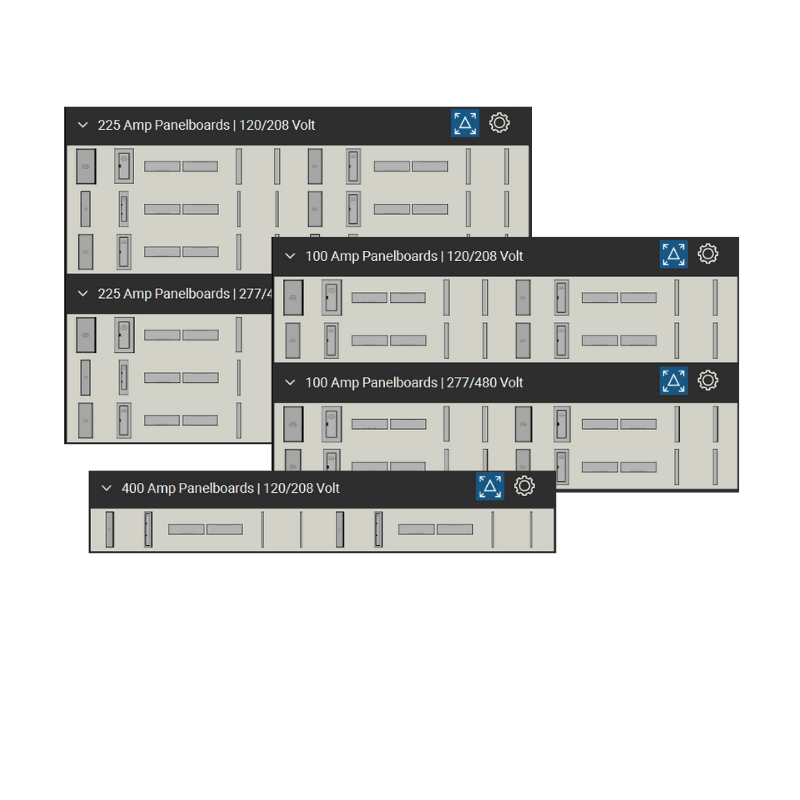

– 100 Amp Panelboards 120-208 Volt
– 100 Amp Panelboards 277-480 Volt

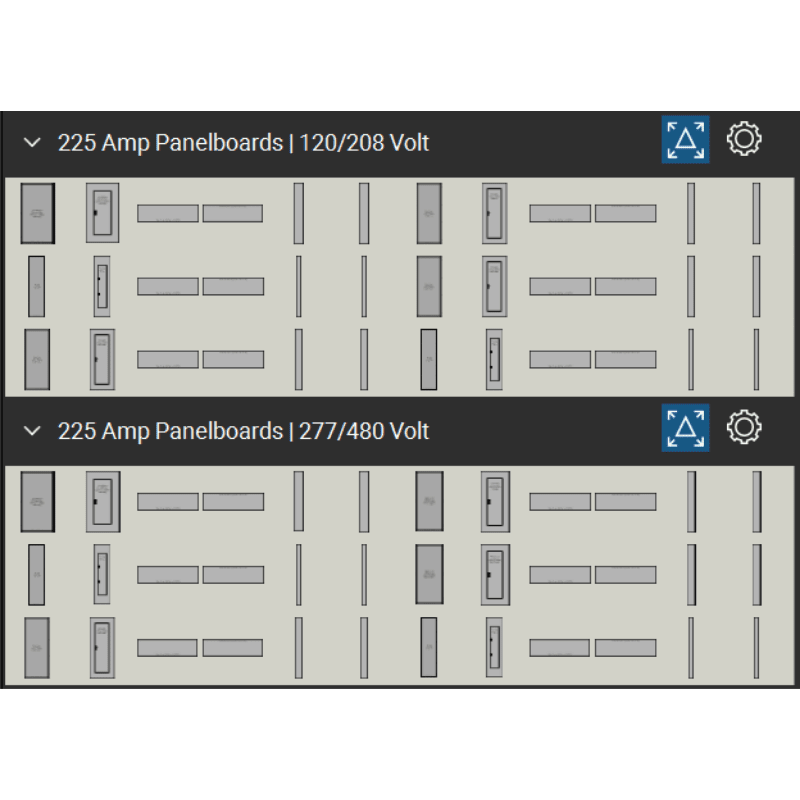

– 225 Amp Panelboards 120-208 Volt
– 225 Amp Panelboards 277-480 Volt

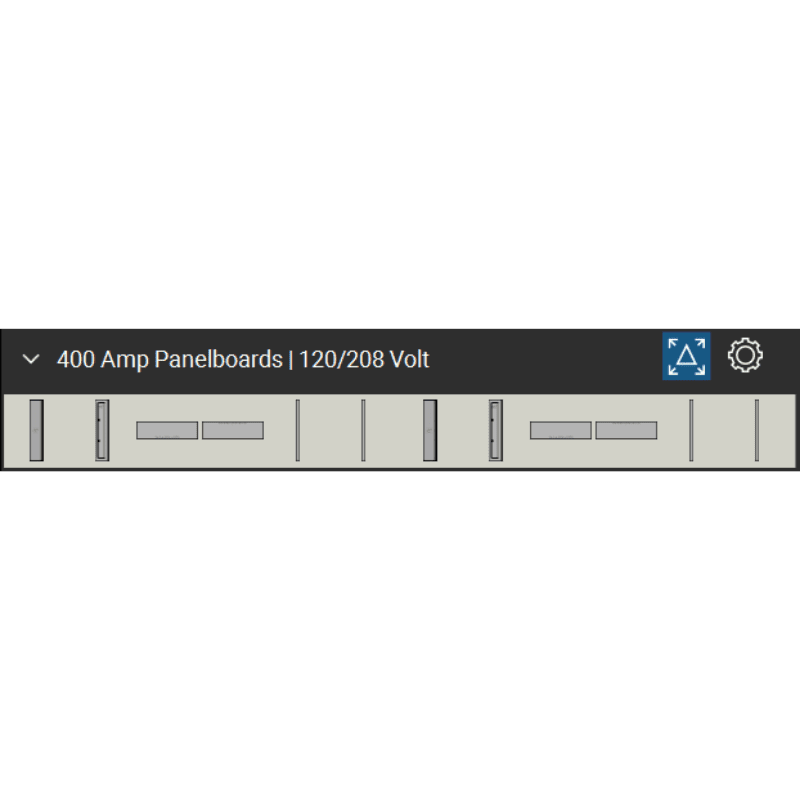

– 400 Amp Panelboards 120-208 Volt
*** Equipment dimensions vary by manufacturer. See note in Specifications below.***
*Working copy of Bluebeam Revu required
*Not all tools shown in preview gallery
Select number of licenses. *One license per user

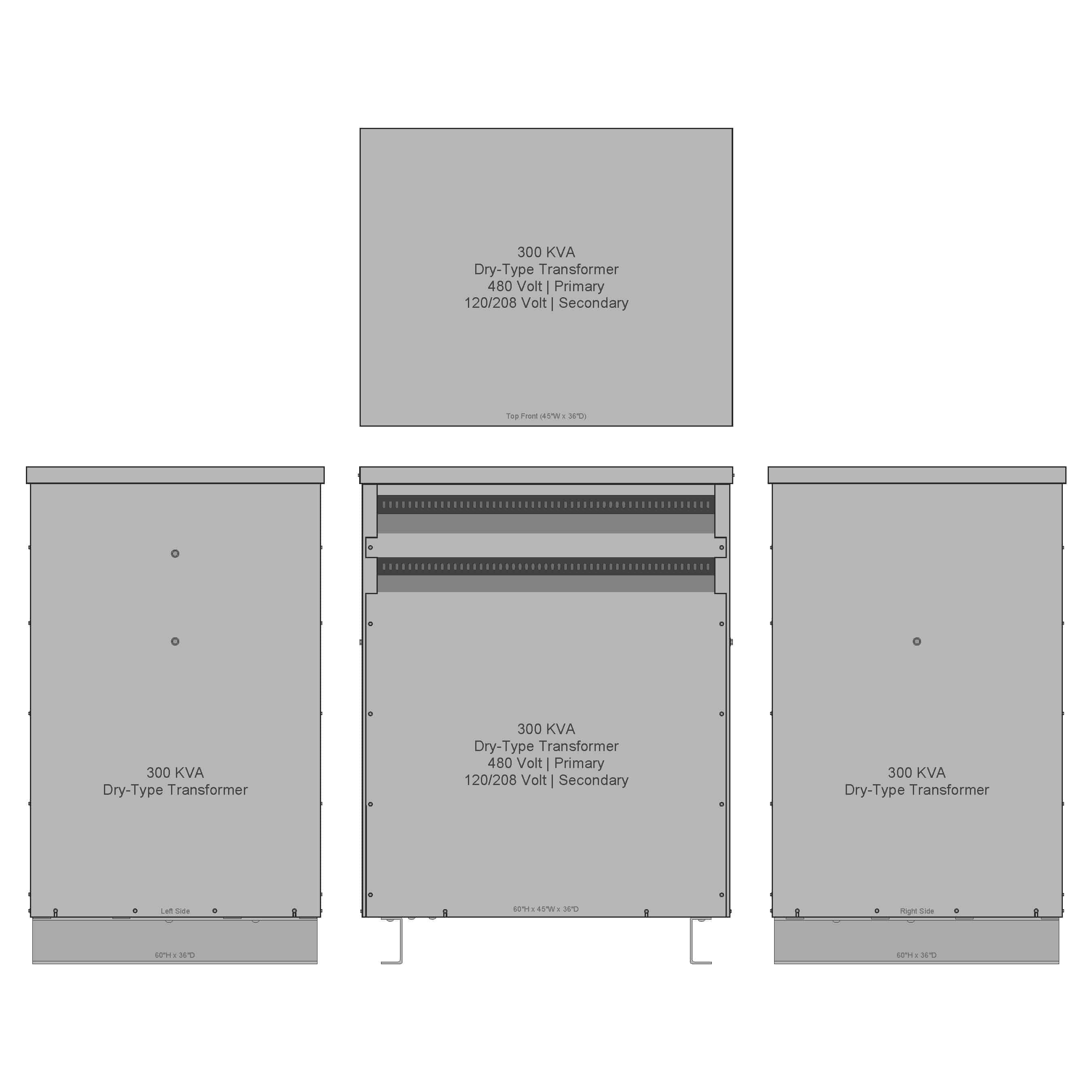

Transformer Tool Set for Bluebeam
$39.95

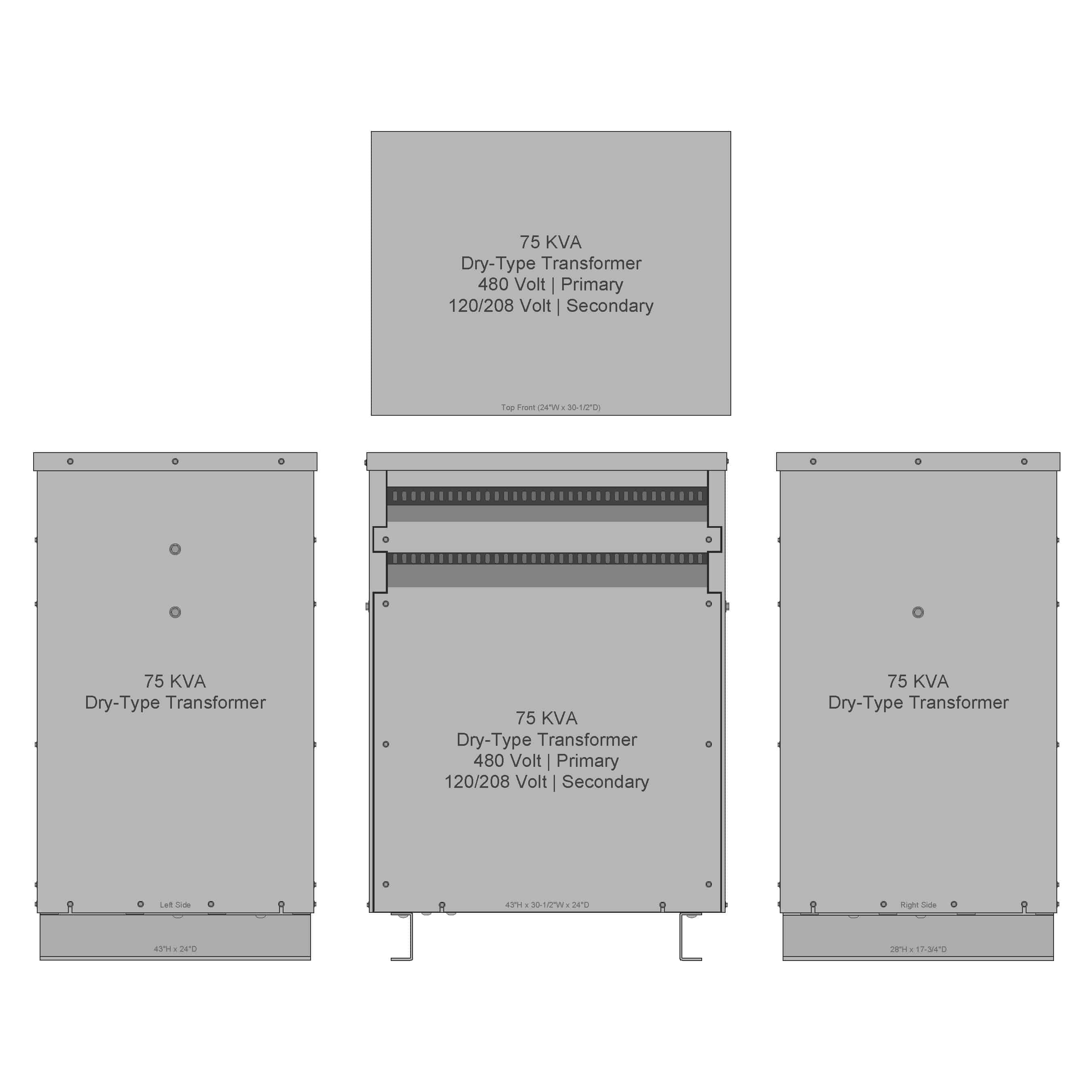

The Bluebeam Transformer Package includes:

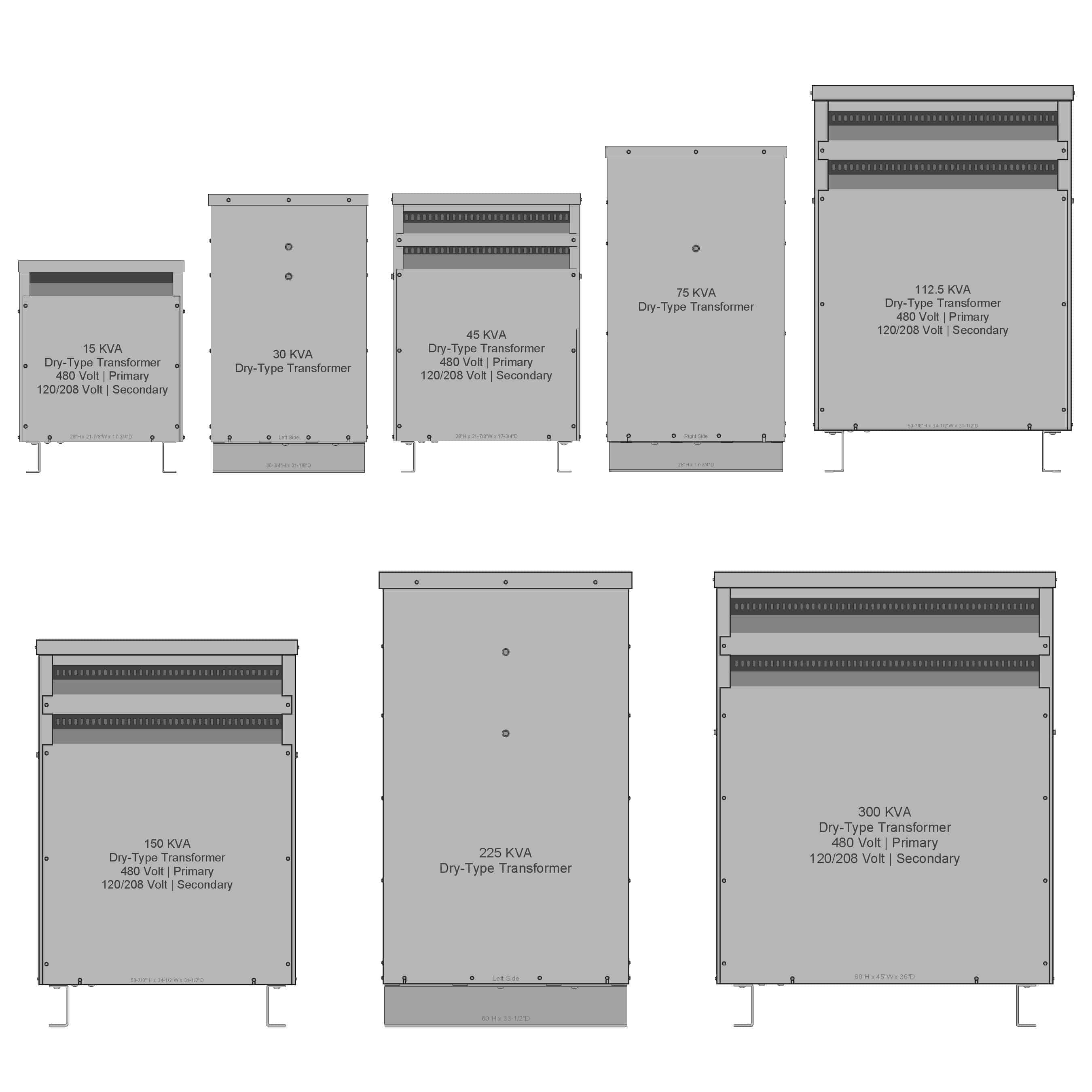

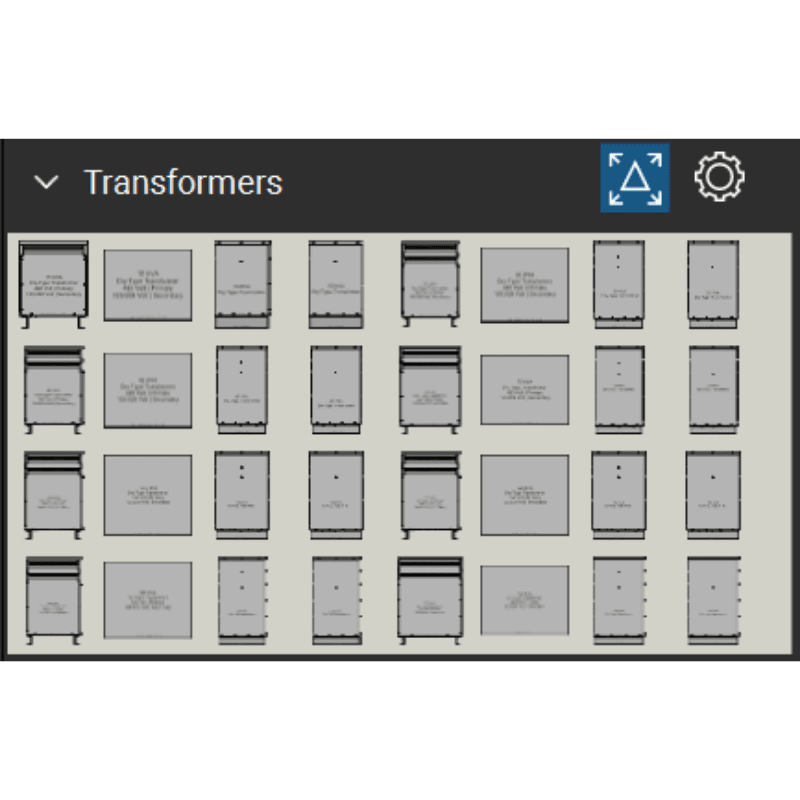

– Transformers Ranging in size from 15KVA to 300KVA
*** Equipment dimensions vary by manufacturer. See note in Specifications below.***
*Working copy of Bluebeam Revu required
*Not all tools shown in preview gallery
Select number of licenses. *One license per user

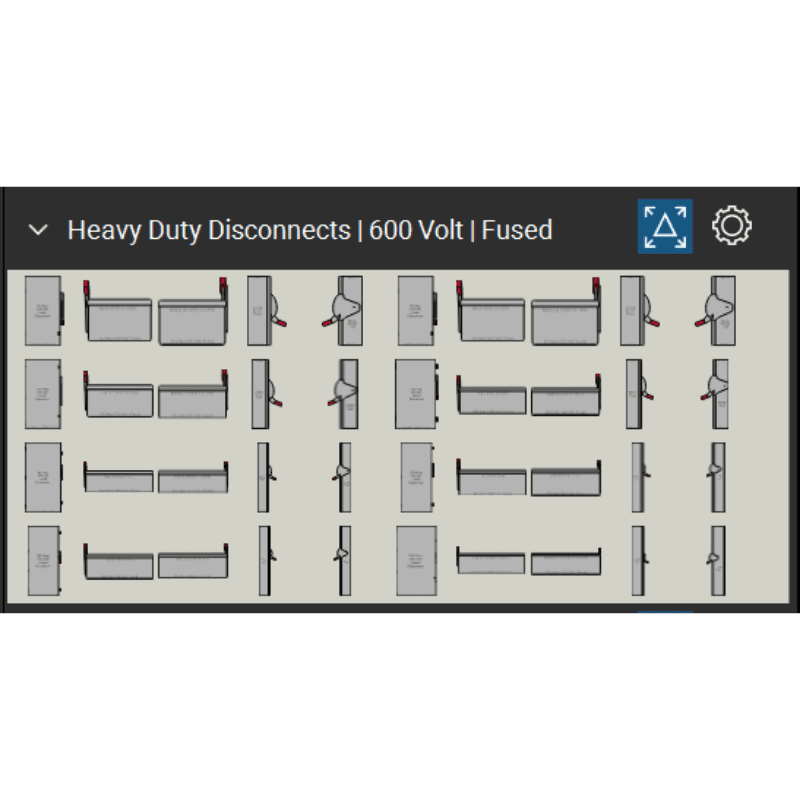

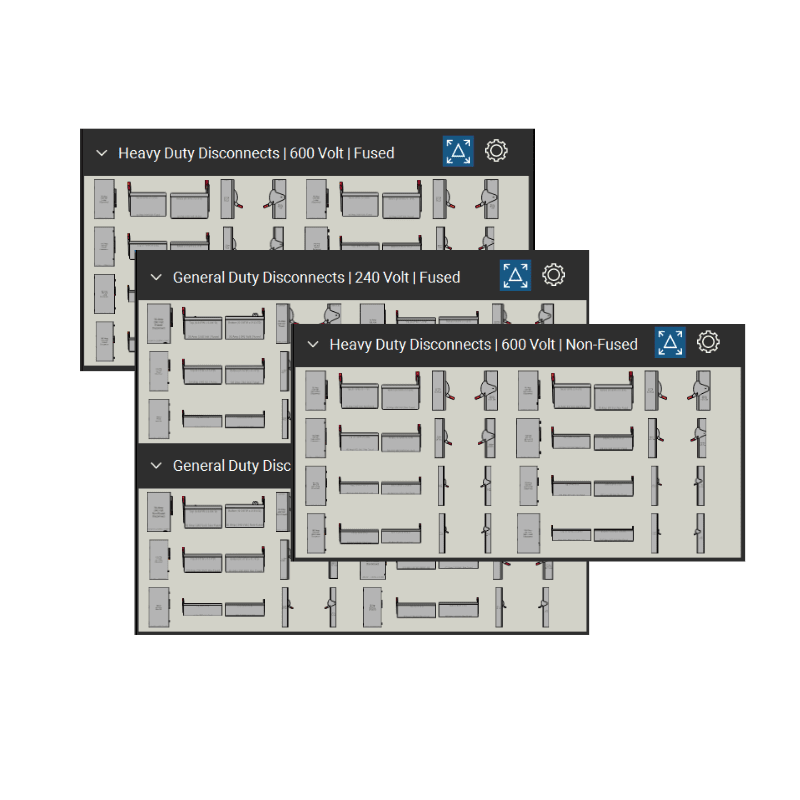

Disconnects Tool Set for Bluebeam
$39.95
The Disconnect Package includes:

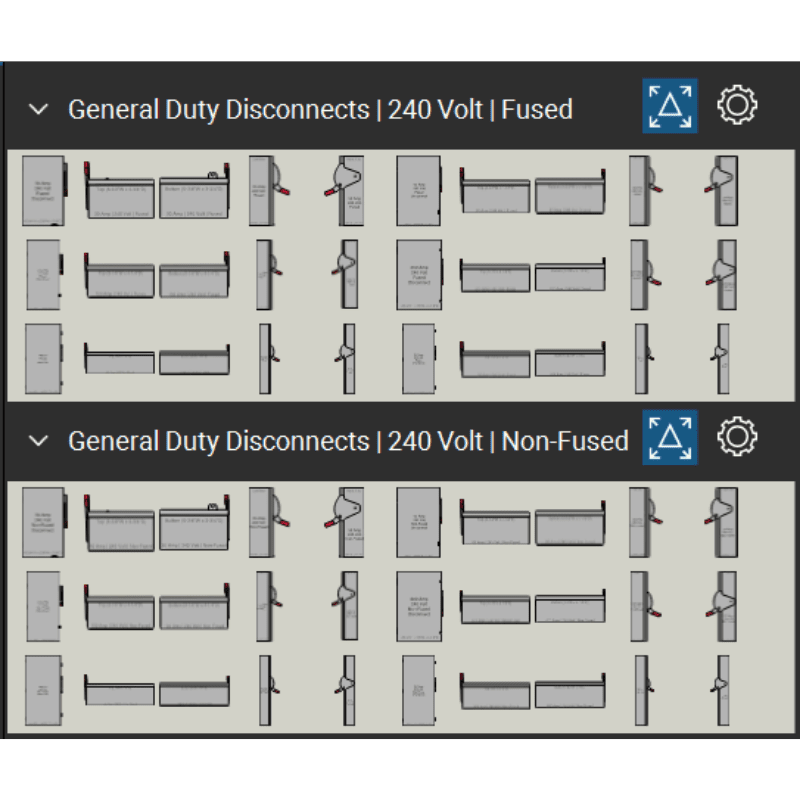

– General Duty Disconnects 240 Volt Fused
– General Duty Disconnects 240 Volt Non-Fused

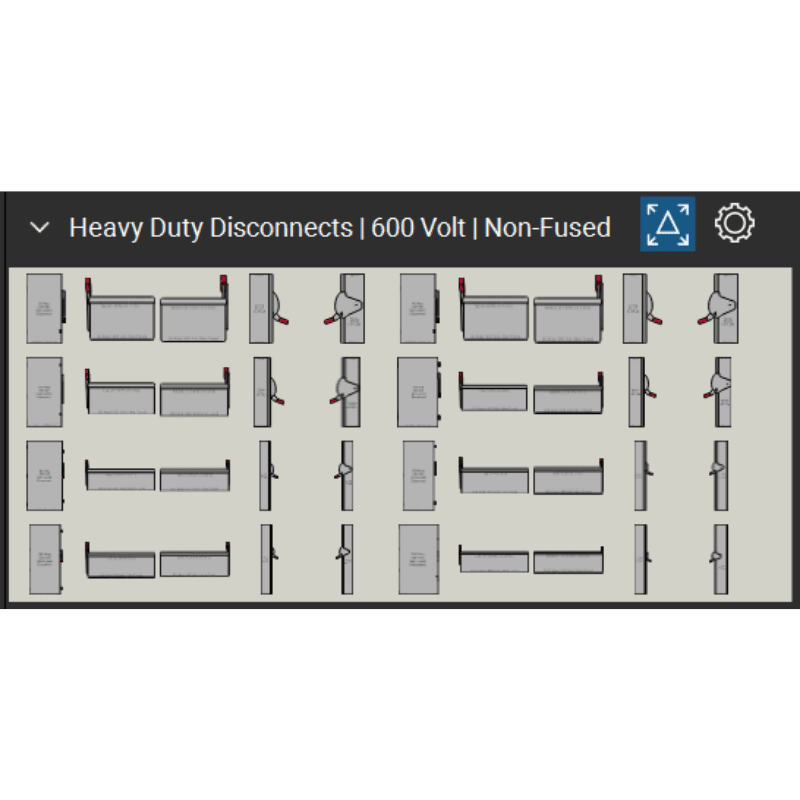

– Heavy Duty Disconnects 600 Volt Fused
– Heavy Duty Disconnects 600 Volt Non-Fused
*** Equipment dimensions vary by manufacturer. See note in Specifications below.***
*Working copy of Bluebeam Revu required
*Not all tools shown in preview gallery
Select number of licenses. *One license per user
Specifications
Whether you are a detailer, field leader, engineer, or anyone else who works with Bluebeam tool sets, our Electrical Packages are for you! Take your skills to the next level, and show off your professional drawings while helping your team exceed. Here’s what’s included with our Bluebeam Electrical Tool Sets:
- Over 300 unique, copyrighted tools
- 10 electrical equipment tool sets
- Built to scale***
- Includes standard size and ratings for common installations
- Realistic dimensions based on common manufacturer specs
- Offers elevation and plan view
- Allows you to custom label your equipment for a specific project
*** Equipment dimensions vary by manufacturer. These Bluebeam tool sets represent close dimensions to many common manufacturers, but they are not accurate to all products. These tools are intended to be used to represent equipment intent and placement, but they should not be used for actual layouts and dimensions. Confirm precise specifications for your project when using these tool sets.***
Benefits
When you start using our markup tools for Bluebeam, you will see the difference in your design right from the start. Here are some of the top advantages you will enjoy when you download our Bluebeam tool sets.
Increased Safety
Detailed planning prior to any installation has the added benefit of increasing safety for your teams. By visually representing what you intend to build with our Bluebeam tools, it becomes much easier to develop a strategy for accomplishing each task in the safest way possible.
Reduced Material Waste
In addition to increased safety, our markup tools for Bluebeam also help you stay on budget and reduce material waste. When you know exactly which items you need, your project has fewer surprises along the way.
Improved Communication
With clear, detailed drawings, you can communicate more effectively with multiple team members. Our custom tools deliver the precise clarity you need to avoid confusion as you juggle multiple companies or contractors involved in your project.
Elevated Efficiency
You will appreciate how our Bluebeam tools help you increase efficiency and drawing speed while reducing the chance of error. Instead of spending endless hours drawing, you can focus on finishing your project.
Coming Soon
Let us know if you want to be contacted when new tool sets are available.
